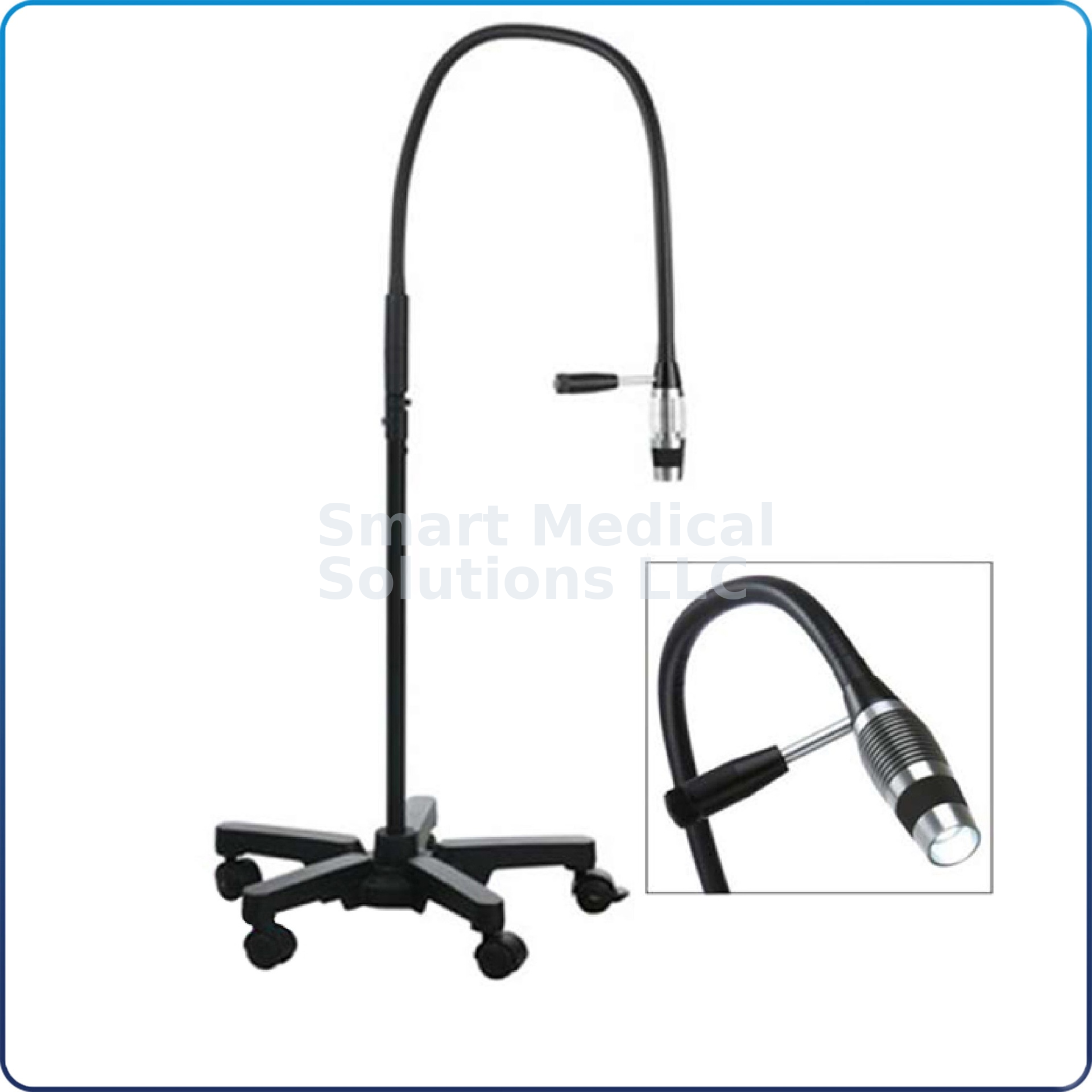

ri-magic® HPLED examination light is a high-performance examination light with the most modern LED technology, similar to daylight. The ri-magic® HPLED is equipped with a focusing device on the front of the lamp head to precisely size the illuminated examination area. The highly flexible and long special arm can be bent in any direction and used as a wall-mounted model, as a desk model with a universal clamp, or as a mobile lamp with a practical wheeled chassis.

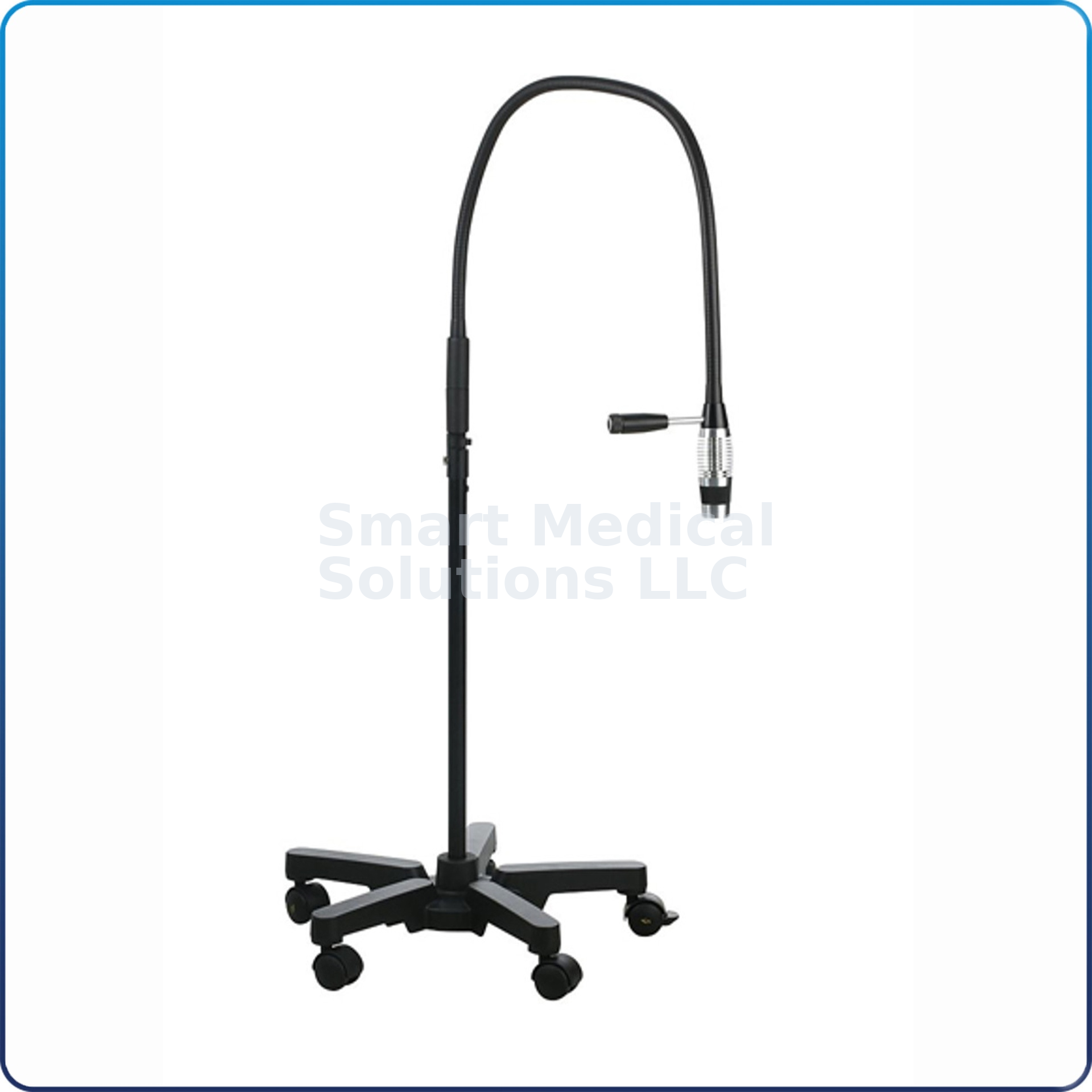

The mobile model is supplied with a particularly steady, heavy, and anti-static stand. Two of the five castors can be locked. The wall and desk models can be quickly and easily mounted to any conventional wall rail in the clinic using universal clamps.
Lighting for diagnostic examinations and surgical interventions
The ri-focus® LED supports the doctor in carrying out diagnostic examinations and surgical interventions. The instruments serve the trained doctor or specialist as an aid in the detection, diagnosis, monitoring, treatment, or relief of illnesses, injuries, or disabilities. The product is usually used in a hospital a doctor's office, etc. The lifespan of the LED is set at 50,000 hours.
Details of ri-magic® HPLED
- LED with magnifying lens
- Focus wheel
- Cooling fins/body
- On-off switch/rheostat for step-less regulation of the light intensity
Features and Benefits
- The focusing device at the front of the light head allows exact adjustment of the size of the illuminated examination area.
- The highly flexible, long special arm can be bent in all directions, and the light remains fixed in the chosen position.
- Significantly less heating and energy loss.
- Simple to use handle with rheostat for infinitely variable regulation of light intensity.
- Wide-range power cord for 230 V/120 V.
- Available with plugs to suit the electrical outlets in your country upon request.
- Power supply mounted to the pole (optional).
Dimensions
| | |
---|
Length of the examination light | without a tripod and mobile base | 1250 mm |
Lamp head | diameter | 45 mm |
Height stand | with mobile base | 700 mm |
Lamp for ri-magic® HPLED
| |
---|
Technical data of the lamp for ri-magic® HPLED | 5700 Kelvin CRI 93 4,6W |
Light field
| | | | | |
---|
Distance | 1000 mm | 800 mm | 600 mm | 400 mm | 200 mm |
Lux max. 1 | 25.000 | 35.000 | 60.000 | 130.000 | >200.000 |
Circle of light max. Ø | 500 mm | 400 mm | 320 mm | 230 mm | 130 mm |
Circle of light min. Ø | 80 mm | 60 mm | 50 mm | 35 mm | 20 mm |
1: Brightness at maximum intensity setting, tolerance +/-20%
Further details
| |
---|
Power adapter | 5V 3Ah 15W |
Ambient temperature | 0° to +40 °C |
Relative Humidity | 30% to 70% non-condensing |
Storage/ Transport Ambient temperature | -5 ° to +50 °C |
Storage/ Transport Relative Humidity | 10% to 85% non-condensing |
