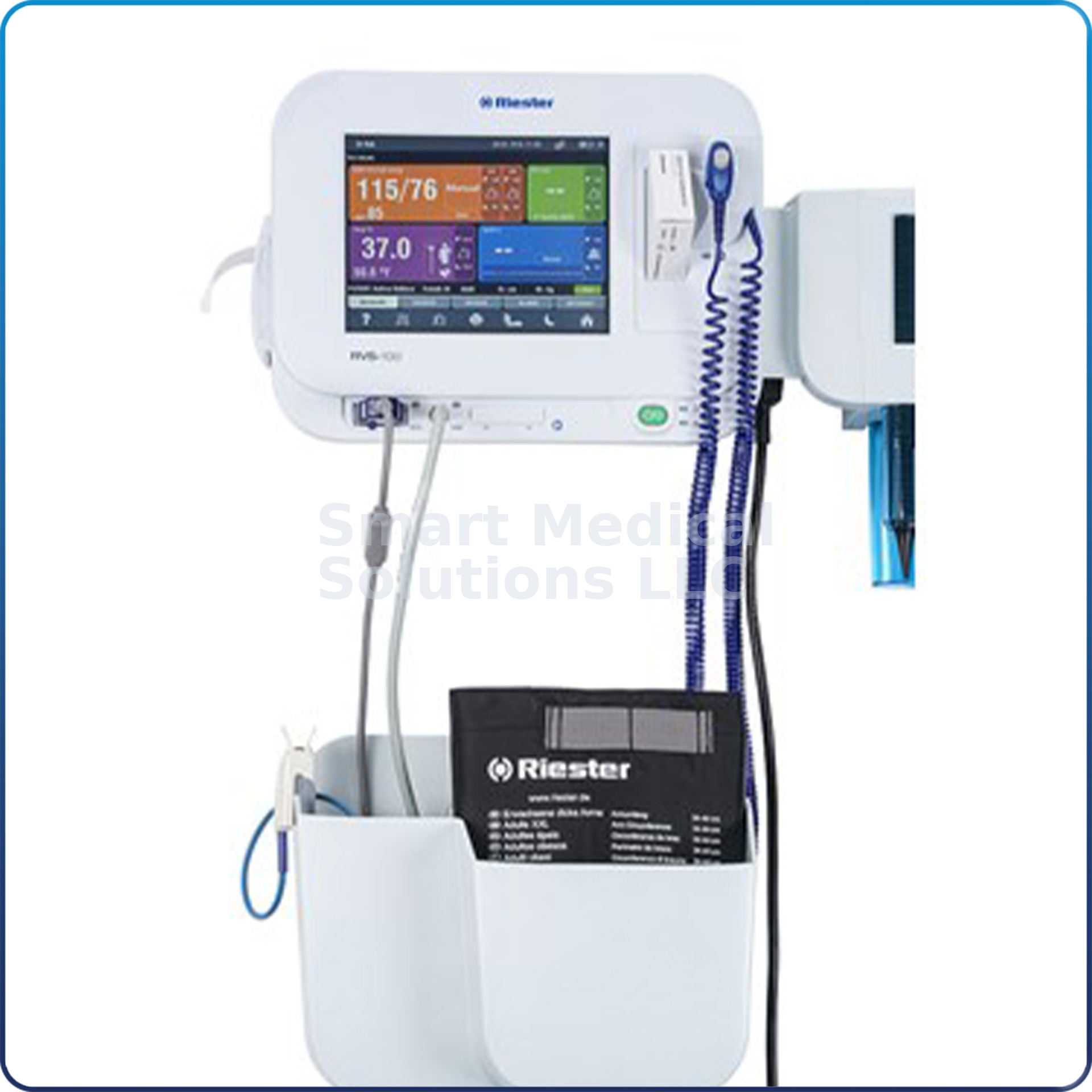

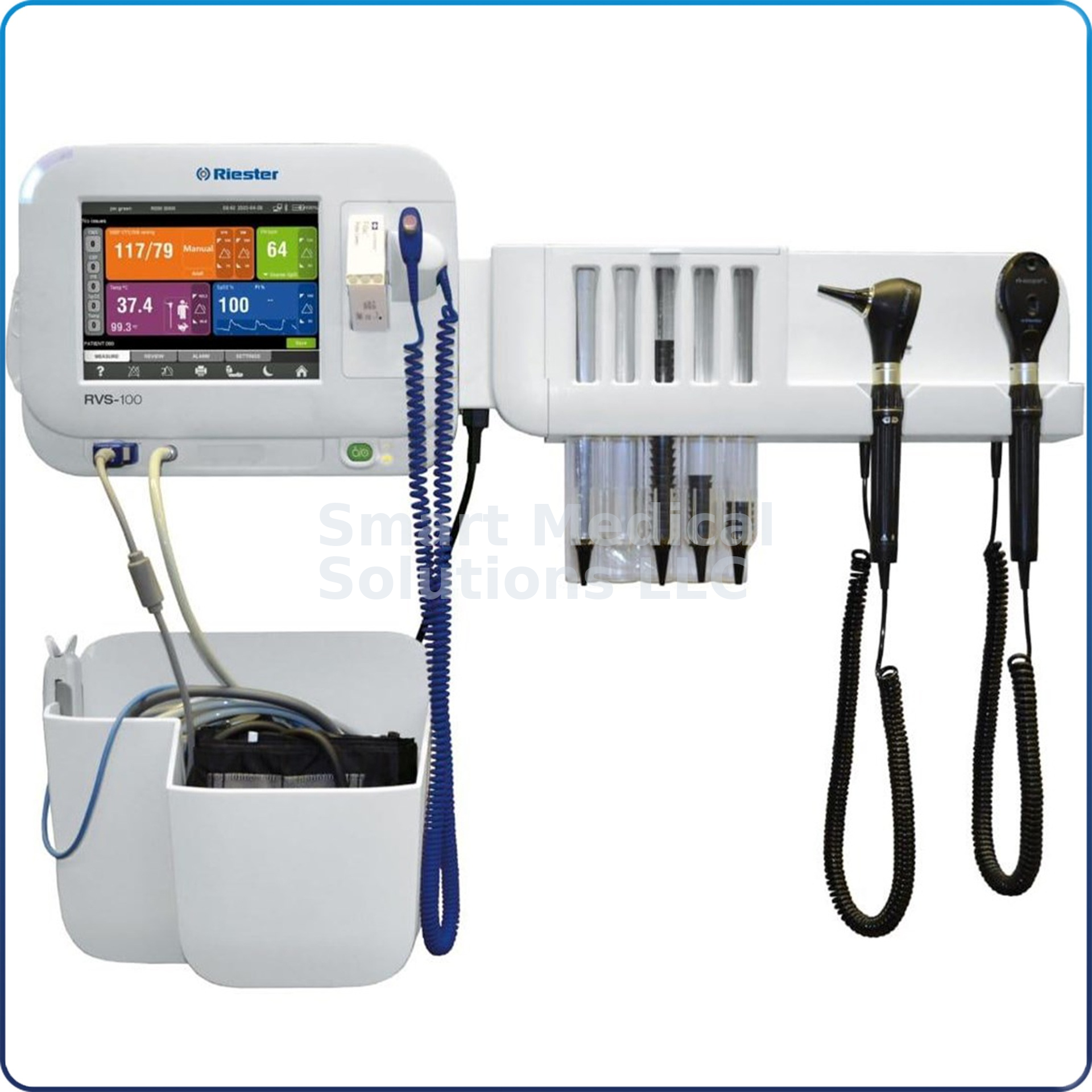

The RVS200 is a versatile, integrated modular wall diagnostic station That measures pulse rate (PR), oxygen saturation (SpO2), non-invasive blood pressure (NIBP), and temperature (oral/axillary probe) with an ophthalmoscopes, and otoscopes. The flexible, modular design offers many configurations and settings to suit the needs of hospitals and clinics as well as office-based and long-term care settings.
RVS200 can be programmed with NEWS (National Early Warning Signs, 1997), and MEWS (Modified Early Warning Signs, 2001) and also has 5 customizable profiles which can be set by the end-user if they have different parameter values. RVS-200 provides the healthcare professional (HCP) with the ability to assess their patient’s eyes, ears, and skin making it suitable to diagnose a wide range of conditions across ENT and Dermatology.
RVS200 SET Includes:
- Pediatric Nellcor SpO2
- Child Nellcor SpO2
- Adult Nellcor SpO2
- Pediatric NIBP Cuff
- Child NIBP Cuff
- Adult NIBP Cuff
- L-3 Otoscope
- ophthalmoscope
Oral temperature probe
The device has ‘Monitor‘, ‘Spot Check‘, and ‘Triage‘ profile options, as well as a ‘Demo’ mode.
Continuous Monitoring is designed for monitoring patients over time and includes physiological and technical alarms. Spot Check is designed for taking a single set of vital signs measurements on a patient. Patient information can be entered and managed, and while technical alarms are still available, physiological alarms are disabled. Triage is designed for rapidly taking vital signs measurements on many patients. Patient information is disabled, in addition to physiological alarms. Demo mode demonstrates how each measurement mode works.
- Option for up to 5 instrument heads
- Continuous Monitoring
- Spot Check
- Triage
- Demo Mode
-HARDWARE-
Features and benefits – hardware
- Large 8“ full HD colocolor TFT-LCD screen displays large numbers and bright color-coded parameters so that vital signs can be seen clearly and interpreted easily.
- The screen is visible in both dark and lit rooms.
- The touch screen and intuitive user interface make it quick and easy for patient information to be entered and settings amended as required.
- The modular design is chosen by the customer around their needs, starting with the choice between a table/mobile stand or wall mounted, through to the optional accessories like a printer.
- Can be plugged into the mains or powered off the battery for 17 hours.2
- The centralized power supply supports up to 3 diagnostic handles, from a choice of Riester ri-scope® L and EliteVue instrument heads:
- Integrated specula dispenser for the otoscope and nasal specula with 5 tubes for 5 different sizes of specula, dispenses a new speculum for each examination and is easy to re-fill and disinfect.
-SOFTWARE-
Features and benefits – software
- RVS200 is programmed with EWS: NEWS, MEWS, and 5 customizable profiles which can be set by the end-user if they have bespoke requirements.
- Serve a large patient population with the ability to save up to 1,000 patient records, with up to 5,000 measurements per patient.
- Can be used on all patient types: adult, pediatric, and neonate.
- RVS200 can communicate through a wired or wireless connection to the hospital’s EMR/EHR, according to the HL7 standard.3
- Software languages available: Chinese, Danish, English, French, German, Italian, Polish, Portuguese, Spanish (Europe) and Traditional Chinese
